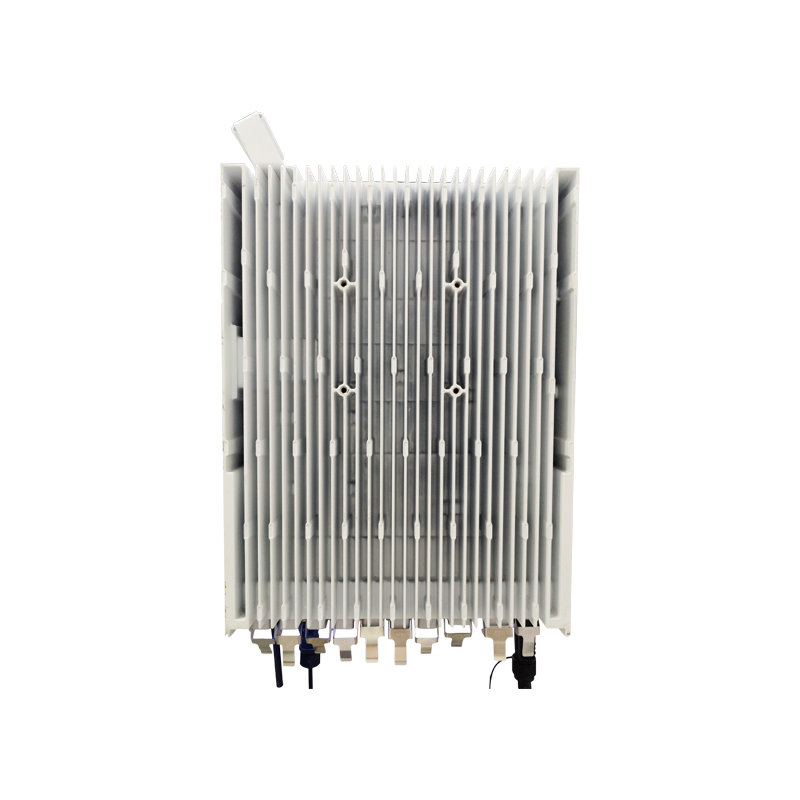

GP-SMS series is a power module designed for the end of AAU/RRU outdoor communication base station, including 3kW/6kW two mass-produced models and 12kw models under research. The main function is to convert 220Vac mains power into 42-58Vdc output, and supply power to the RF equipment at the end of 4G/5G base station. The efficiency can reach 96.5%~97.5%, reaching the advanced level of the industry.

This series adopts blade cooling design, waterproof to +IP65 grade; Lightning protection according to 20kA/10kA 8/20us standard design (communication/dry contact 3kV lightning protection), to meet the needs of various harsh working conditions. Standard 3/7 sets of power output, 4 dry contacts, two sets of battery interfaces, and can be customized and fine-tuned according to customer needs; Support four-module parallel, 3kW and 6kW models hybrid parallel expansion, up to 8 sets of B4850A battery access, to facilitate customers to expand more powerful 5G base station integrated power system; The structural components can be installed in various positions to meet the requirements of wall hanging, pole holding, and Angle steel tower.
